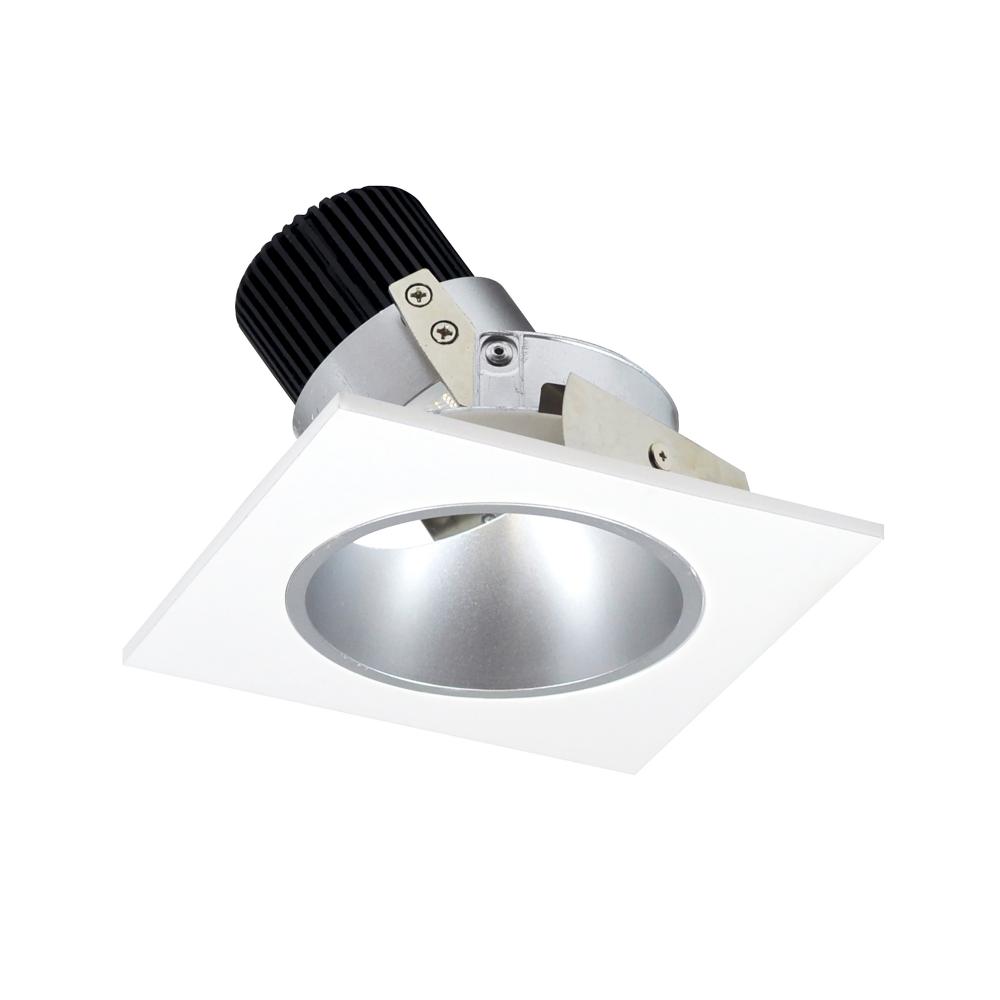

4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Die-cast adjustable reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
Adjustability: 40° (new construction) or 25° (remodel)
Compatible Housing: NHIOICD-48. NHIOICDCP-48, NHRIOIC-48
Lumens / Wattage: 850lm / 12W
Color Temperature: 4000K
Color Rendering Index: 90 CRI
Beam Spread: 10° Spot (fixed)
Finish: Matte Powder White Reflector / Matte Powder White Flange
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-FMMR-4S

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Title 24

Category:

Recessed

Product Line:

LE46

Est. Shipping Wt.:

Lumens / Light Output:

850lm

Ship Carton Height:

3.5

Ship Carton Length:

Ship Carton Width:

CCT:

4000K

CEC Database:

CEC Item Number:

NIO-4********

CEC Substitute Item:

NIO-4SD40XBW/HL

Contains Battery:

Country of Origin:

CHN

CRI:

DLC Listed:

Master Box H:

Master Box L:

Master Box Qty:

Master Box W:

Master Box Wt.:

Product Family:

4" Iolite Dedicated Trim

Safety Listing:

cULus

Wattage:

12W

Additional Information:

Spec Sheet

Sales Sheet

Instruction Sheet
