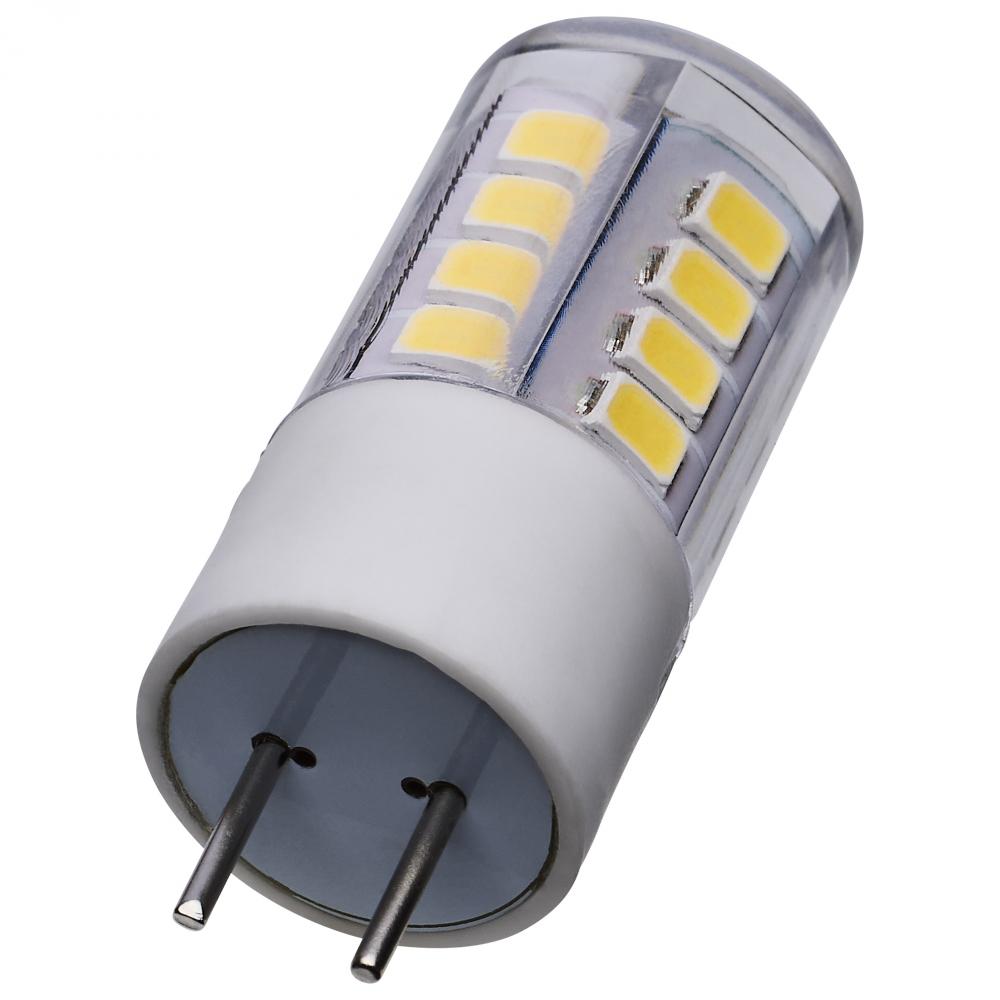

3 Watt T5 LED; Clear Finish; GY6.35 Base; 5000K; 12 Volt (S12317)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
7
90
/
/ 1
($7.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S12317
Dimensions:
Width: 0.63"
Clear
Availability:
- Manufacturer has 1258 items available.
Description
Details
Downloads
3 Watt T5 LED; Clear Finish; GY6.35 Base; 5000K; 12 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
Mini and Pin-Based LED
Volts:
12V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
25000
Bulb Kelvin:
5000K
Bulb Shape:
T5
Diameter:
0.63
EA Length:
1.5
Harmonized Codes:
8539.52.0010
Length:
1.57
Lumens:
300L
Shap Carton Width:
1.5
Ship Carton Height:
2.95
Ship Weight:
0.033
Warranty:
3 Year Limited - Mini LED Pin Base
Weight:
0.02
Beam Spread:
300
Bulb ANSI Base:
GY6.35
Bulb Base:
Bi Pin GY6.35
Bulb Finish:
Clear
Candle Power:
28
Carton Cubic Feet:
0.0038
Cartons Per Unit:
1
CBCP:
28
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Check the transformer/driver MFG for dimmer compatibility
Dimming Type:
Phase cut
Efficacy:
100.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Low 12-volt Operation
Feature 2:
300 degree Omni-Directional Light
Feature 3:
5000K CCT
Feature 4:
Damp location rated
Feature 5:
T5, Bi-Pin GY6.35 Base
Feature 6:
Dimmable
Feature 7:
25,000 Life Hours
Flicker Free:
No
Housing Color:
White
Incandescent Equivalent:
25W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Filament:
LED
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO|NUVO's S12317 3-watt, GY6.35-base, Halogen replacement lamp. Engineered for low 12-volt operation and featuring 300-degree omni-directional lighting, this
Material:
Ceramic / Polycarbonate (PC)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
0.7
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO|NUVO's G4 and GY6.35 Halogen replacement lamps. Available in an array of shapes, bases, and finishes, these lamps are equipped with LED technology, ensuri
Short Description:
3W/LED/GY6.35/CL/850/12V
Style:
Utility
Surge Protection:
Built-in surge protection - 1.5KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
70%
Wattage Selectable:
No
Watts:
3W
