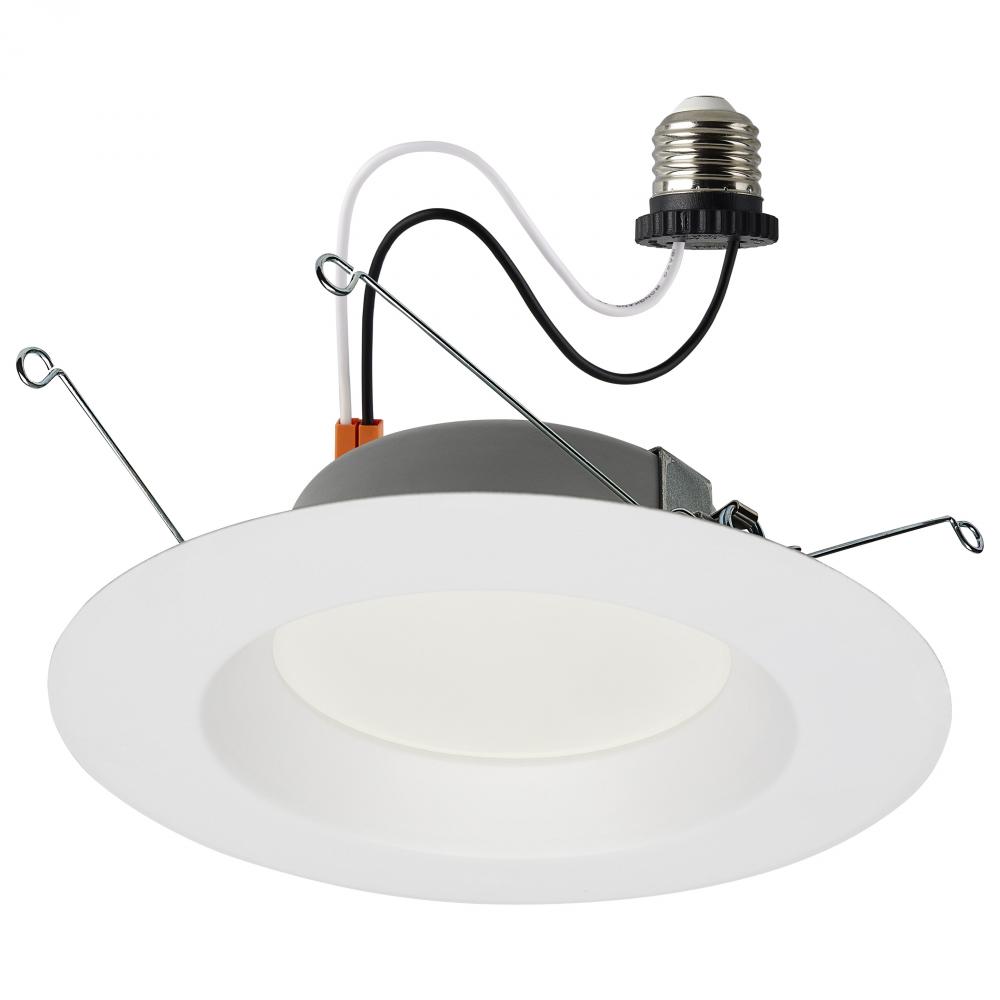

12.5 Watt LED Downlight Retrofit; 5-6"; 2700K; 120 Volts; Dimmable; White Finish (S11642)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
15
90
/
/ 1
($15.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11642
Dimensions:
Height: 1.97"
Width: 7.36"
White
Availability:
- Manufacturer has 1494 items available.
Recommended Items
Description
Details
Downloads
12.5 Watt LED Downlight Retrofit; 5-6"; 2700K; 120 Volts; Dimmable; White Finish
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
LED
, Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
35000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.36
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
900L
Ship Carton Height:
8.07
Ship Carton Length:
8.07
Ship Carton Width:
2.76
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.104A
ANSI Base:
E26 Adapter
Beam Spread:
100
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.104
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.36 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
72.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Smooth Baffle | Round
Feature 2:
90 CRI
Feature 3:
E26 Adapter
Feature 4:
Wet Location
Feature 5:
Compatible with 5-6 inch standard housing
Feature 6:
T24 Compliant
Feature 7:
Phase-Cut Dimmable down to 10 percent
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
75W
Includes:
E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
Elevate your lighting with SATCO|NUVO’s S11642 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color rendering temperature of 2700K, making it the perfect upgrade for e
Material:
Die-Cast Aluminum
Minimum Compartment Size:
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
Romance Copy:
Elevate your lighting with SATCO|NUVO’s LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring a
Safety Listing:
cULus - Classified
SDS class:
LED_Lamp
Short Description:
12.5WLED/RDL/5-6/927/120V
Temperature (CCT):
2700K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.6
