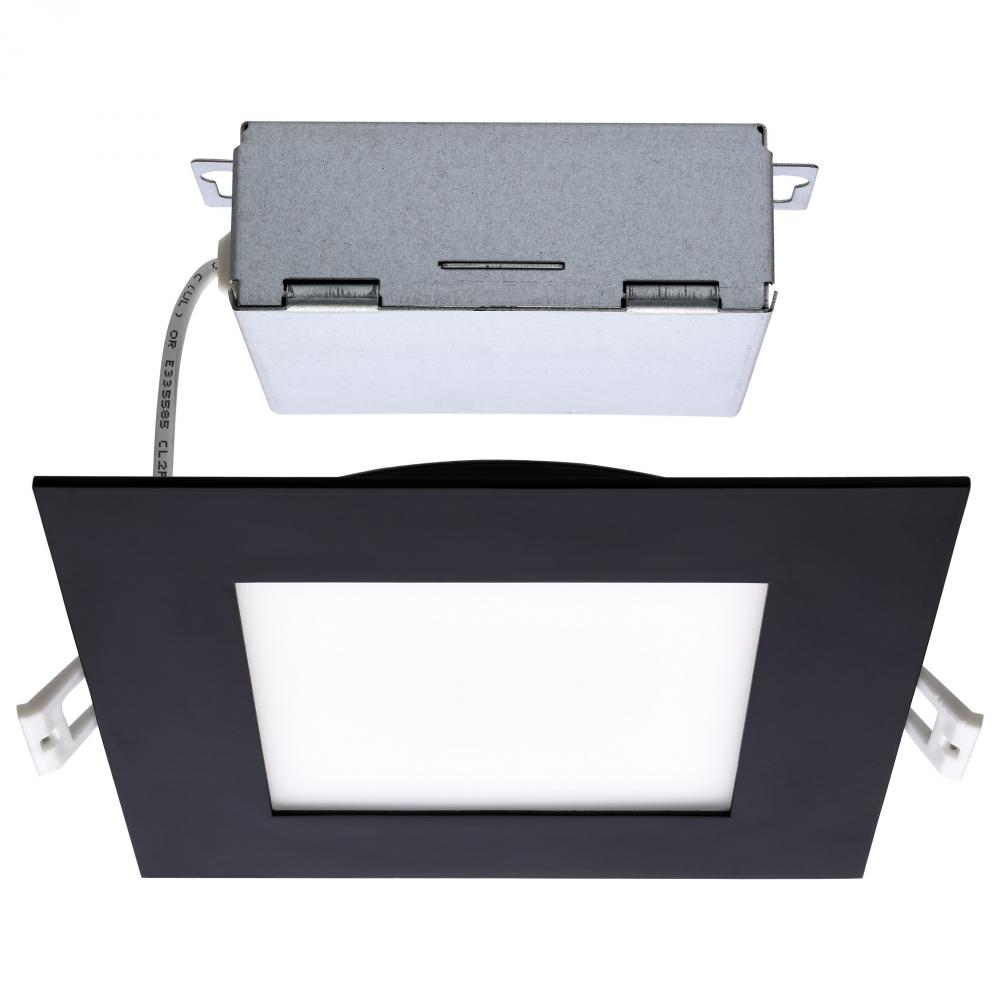

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; (S11877)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
33
90
/
/ 1
($33.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11877
Dimensions:
Height: 0.90"
Width: 6.69"
Black
Availability:
- Manufacturer has 3805 items available.
Recommended Items
Description
Details
Downloads
12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver; Black Finish
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Option:
Energy Star
, LED
, Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Length:
6.69
Lumens:
750L
Ship Carton Height:
7.13
Ship Carton Length:
8.74
Ship Carton Width:
2.13
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
BAA Compliant:
No
Beam Spread:
108
CA Prop-65:
Lead
Carton Cubic Feet:
0.0768
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
62.50 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2732794
FCC Compliant:
Yes
Feature 1:
ColorQuick CCT Selectable
Feature 10:
120V
Feature 2:
90 CRI
Feature 3:
Wet location rated
Feature 4:
Dimmable
Feature 5:
IC Rated
Feature 6:
AT Rated
Feature 7:
Title 24 Compliant
Feature 8:
ENERGY STAR Certified
Feature 9:
108-Degree Beam Angle
Finish Family:
Black
Fixture shape:
Square
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO’s S11877 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T
Material:
Aluminum
Mounting Procedure:
Recessed Direct Wire
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12WLED/DW/6/CCT-SEL/SQ/RD/BK
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
Black
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.16
