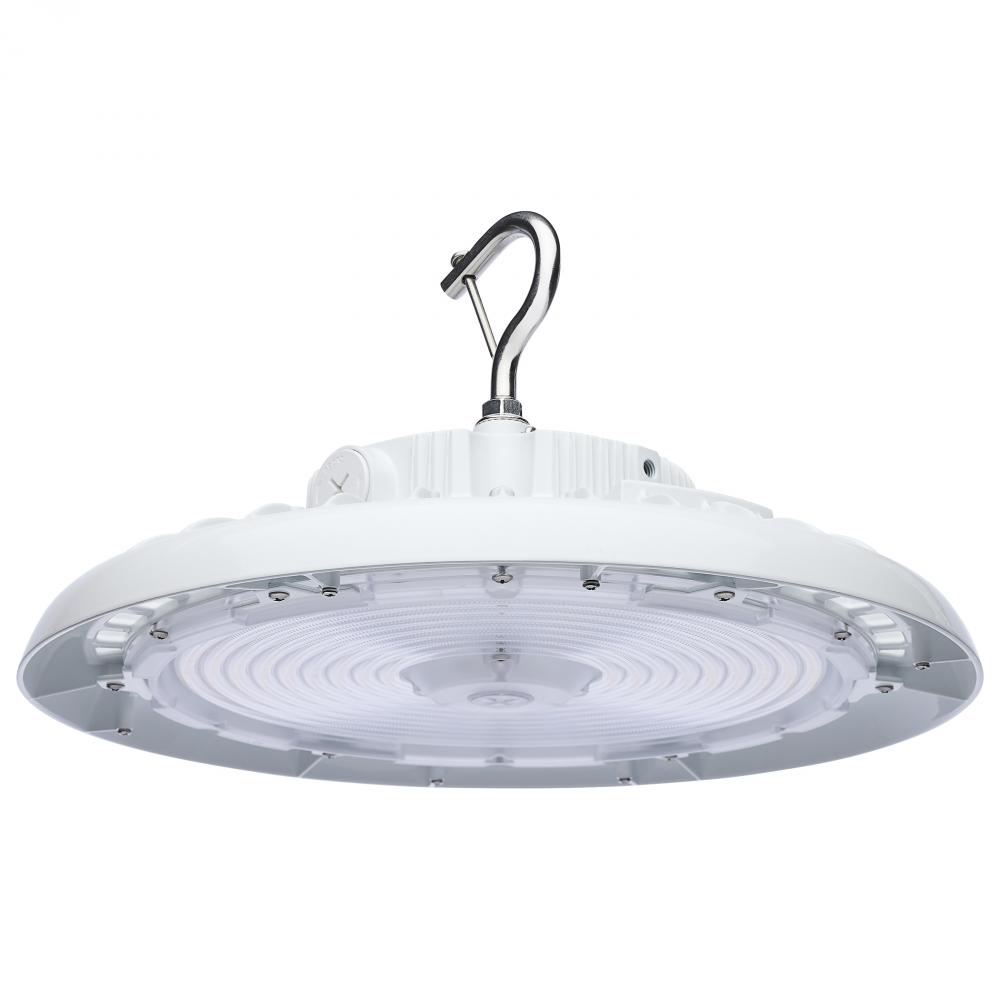

Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 120-347 Volt; White Finish (65/813)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
198
00
/
/ 1
($198.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/813
Dimensions:
Height: 7.30"
Width: 13.40"
White
Availability:
- Manufacturer has 531 items available.
Recommended Items
Description
Details
Downloads
Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 120-347 Volt; White Finish
Category:
Utility
Subcategory:
Other Utility
Option:
Prop 65
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Color Temperature:
Warm White to Natural Light
Diameter:
13.4
Dimmable:
Yes-Dimmable
Each Height:
4.92
Each Length:
14.17
Each Width:
14.17
Lumens:
28600L-32000L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
1.250-0.432/1.458-0.504/1.667-0.576A
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Quantity:
1
Efficacy:
190.67/173.14/160.00 LPW
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 10:
White Finish
Feature 2:
Range Voltage 120V-347V
Feature 3:
Integrated Sensor Port
Feature 4:
EM Battery Backup Capable
Feature 5:
6 Foot Supply and Low Voltage Whips
Feature 6:
0-10V Dimming
Feature 7:
6kV Surge Protection and Wet Location Rated
Feature 8:
IP65 and IK08
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
HID Equiv:
400W-450W
Impact Rating (IK):
IK08
Incandescent Equivalent:
1000W/1500W/2000W
Includes:
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor:
Indoor
Installation Notes:
Mounting Height: Up to 20 feet
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-813 Round High Bay Field Selectable fixture in a white finish, offers an energy efficient and low-maintenance alternative to traditional HID fixtures. This luminary is field selectable, giving users the flexibility to choose from three
Material:
Die-cast Aluminum
Mounting Procedure:
Pendant Hanging Surface
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Kraft Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Round High Bay Field Selectable fixtures offer an energy efficient and low-maintenance alternative to traditional HID fixtures. These luminaires are field selectable, giving users the flexibility to choose from three wattage and three CCT
Safety Listing:
cULus - Listed
Short Description:
LED UFO HIGHBAY CCT & WATT ADJ
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Weight Lb.:
6.42
