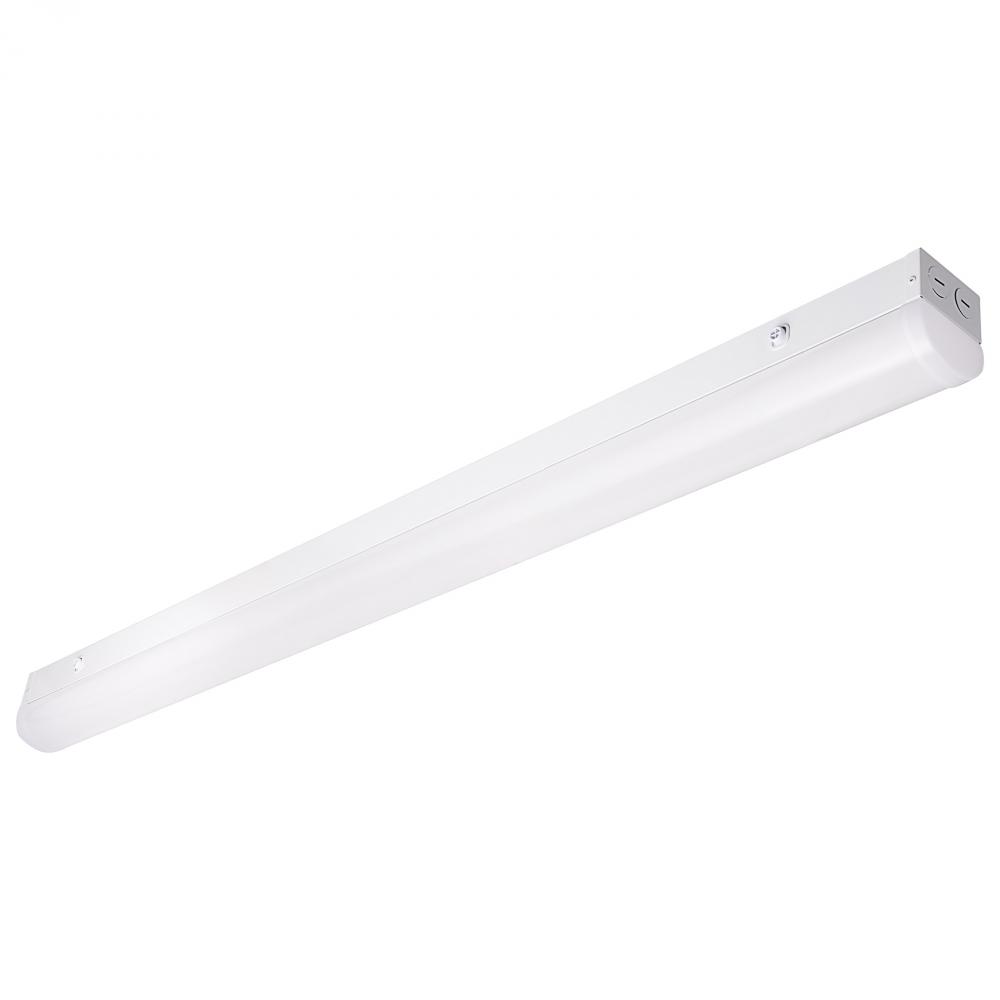

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor (65/1701)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
148
00
/
/ 1
($148.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/1701
Dimensions:
Height: 3.27"
Width: 2.95"
White
Availability:
- Manufacturer has 301 items available.
Recommended Items
Description
Details
Downloads
4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor
Category:
Undercabinet
Subcategory:
LED Undercabinet Lights
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
5501-6000
Category:
Linear Strip
Sub Category:
Strip Fixture
Additional Info:
Other DLC Listings: S-5A4OGI, Standard, Direct Linear Ambient Luminaires; S-GB3EIK, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.
Avg Rated Hours:
50000
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.38
Each Length:
50.08
Each Width:
5.13
Length:
48
Lumens:
3900L-6750L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B2-U4-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Stairwell and Passageway Luminaires
Each Cube:
0.7999
Each Quantity:
1
Efficacy:
130.00/133.13/135.00 LPW
FCC Compliant:
Yes
Feature 1:
CCT & Wattage Selectable
Feature 2:
Flicker Free Driver
Feature 3:
0-10V Dimmable
Feature 4:
Multiple Mounting Options
Feature 5:
DLC Premium
Feature 6:
Integrated Microwave Sensor
Feature 7:
Ultra Slim Design
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
100W-150W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
The SATCO|NUVO 65-1701 LED 4-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K and 3-Wattage options - 30W, 40W, 50W - the user can tailor the ligh
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
4' LINEAR STRIP W/SENSOR
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Total Harmonic Distortion:
10.71%
Wattage Selectable:
Yes
Weight Lb.:
3.56
